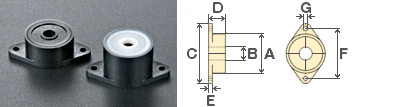

FFD-28FS/FW/SS/SW Series friction damper
| A | 28mm | F | 36mm |
|---|
| B | Ø8mm | G | Ø3.2mm |
|---|
| C | 44mm |
|---|
| D | 13mm |
|---|
| E | 3mm |
|---|
| Model |
Max toque |
Damping direction |
Max rotational speed |
Max cycle rate |
Operating temperature |
Weight |
Body & cap material |
Cap color |
FFD-28FS-R102
|
0.1±0.01Nm(1±0.1kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
Black |
FFD-28FS-L102
|
0.1±0.01Nm(1±0.1kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
White |
FFD-28FS-R502
|
0.5±0.05Nm(5±0.5kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
Black |
FFD-28FS-L502
|
0.5±0.05Nm(5±0.5kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
White |
FFD-28FS-R103
|
1±0.1Nm(10±1kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
Black |
FFD-28FS-L103
|
1±0.1Nm(10±1kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
White |
FFD-28FW Series friction damper
| A | 28mm | F | 36mm |
|---|
| B | Ø8mm | G | Ø3.2mm |
|---|
| C | 44mm |
|---|
| D | 19mm |
|---|
| E | 3mm |
|---|
| Model |
Max toque |
Damping direction |
Max rotational speed |
Max cycle rate |
Operating temperature |
Weight |
Body & cap material |
Cap color |
FFD-28FW-R103
|
1±0.1Nm(10±1kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
27g |
POM |
Black |
FFD-28FW-L103
|
1±0.1Nm(10±1kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
27g |
POM |
White |
FFD-28FW-R153
|
1.5±0.15Nm(15±1.5kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
27g |
POM |
Black |
FFD-28FW-L153
|
1.5±0.15Nm(15±1.5kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
27g |
POM |
White |
FFD-28FW-R203
|
2±0.2Nm(20±2kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
27g |
POM |
Black |
FFD-28FW-L203
|
2±0.2Nm(20±2kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
27g |
POM |
White |

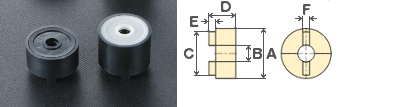

FFD-28SS Series friction damper
| A | 28mm | F | 4mm |
|---|
| B | Ø8mm |
|---|
| C | Ø24mm |
|---|
| D | 16mm |
|---|
| E | 4mm |
|---|
| Model |
Max toque |
Damping direction |
Max rotational speed |
Max cycle rate |
Operating temperature |
Weight |
Body & cap material |
Cap color |
FFD-28SS-R102
|
0.1±0.01Nm(1±0.1kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
Black |
FFD-28SS-L102
|
0.1±0.01Nm(1±0.1kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
White |
FFD-28SS-R502
|
0.5±0.05Nm(5±0.5kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
Black |
FFD-28SS-L502
|
0.5±0.05Nm(5±0.5kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
White |
FFD-28SS-R103
|
1±0.1Nm(10±1kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
Black |
FFD-28SS-L103
|
1±0.1Nm(10±1kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
14g |
POM |
White |
FFD-28SW Series friction damper
| A | 28mm | F | 4mm |
|---|
| B | Ø8mm |
|---|
| C | Ø24mm |
|---|
| D | 22mm |
|---|
| E | 4mm |
|---|
| Model |
Max toque |
Damping direction |
Max rotational speed |
Max cycle rate |
Operating temperature |
Weight |
Body & cap material |
Cap color |
FFD-28SW-R103
|
1±0.1Nm(10±1kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
25g |
POM |
Black |
FFD-28SW-L103
|
1±0.1Nm(10±1kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
25g |
POM |
White |
FFD-28SW-R153
|
1.5±0.15Nm(15±1.5kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
25g |
POM |
Black |
FFD-28SW-L153
|
1.5±0.15Nm(15±1.5kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
25g |
POM |
White |
FFD-28SW-R203
|
2±0.2Nm(20±2kgfcm) |
Clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
25g |
POM |
Black |
FFD-28SW-L203
|
2±0.2Nm(20±2kgfcm) |
Counter-clockwise |
30 RPM |
13 Cycles/min |
-10 ~ 60°C |
25g |
POM |
White |
