AE-020019ASP/025025ASP/002540ASP
Speed Controllers
Bansbachs Specialty dampers are a superior alternative to coil springs or rubber bump stops for energy absorption and linear deceleration. We offer many different models from mild to extreme. Our specialty dampers are the perfect solution for a wide range of applications, from a simple cabinet door, to the corrosive environments of the medical field, or the extreme environment of industrial machine equipment. Bansbach specialty dampers are designed to absorb the impact with no bounce back. This steady, gradual deceleration allows faster cycle rates, increased equipment life, and higher production rates while reducing maintenance expenses.
| Model | Stroke mm | Thrust N Min - Max | Force N Min - Max | Returning time S | Max eccentric angle ° | Weight kg |
|---|---|---|---|---|---|---|
| AE-020019ASP | 19.1 | 22－1779 | 4.69－9.56 | 0.65 | 2 | 0.13 |
| AE-025025ASP | 25.4 | 62－3559 | 10.67－30.56 | 0.85 | 2 | 0.30 |
| AE-025040ASP | 40 | 67－3559 | 10.67－32.92 | 0.95 | 2 | 0.39 |

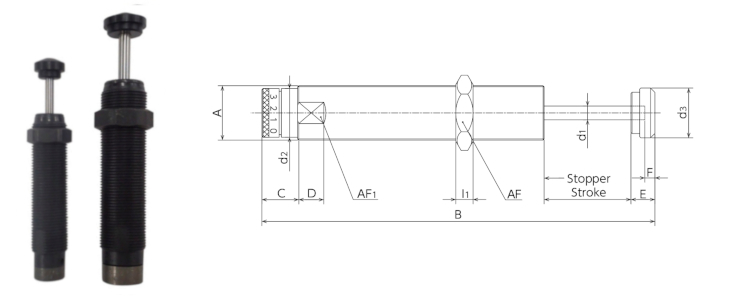

| Model | A | B | C | D | E | F | D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 | AF | AF1 | AF2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AE-020019ASP | M20×1.5 | 118.6 | 13.2 | 12 | 11 | 4.6 | 4.8 | 16.8 | 16.8 | 20.5 | 25 | 6 | 25 | 12 | 8 | 24 | 18 | 22 |
| AE-025025ASP | M25×1.5 | 142.6 | 16.5 | 12 | 11 | 4.6 | 6.3 | 22.4 | 22.9 | 25 | 30 | 8 | 32 | 16 | 10 | 30 | 23 | 27 |
| AE-025040ASP | M25×1.5 | 189.0 | 16.5 | 12 | 11 | 4.6 | 6.3 | 22.4 | 22.9 | 25 | 30 | 8 | 32 | 16 | 10 | 30 | 23 | 27 |
