FS Series

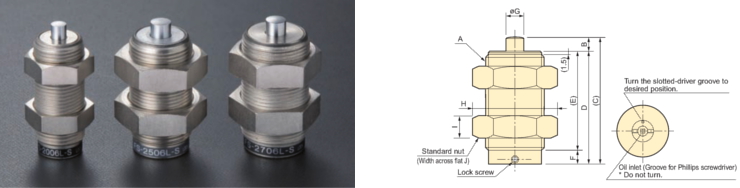

Adjustable Shock Absorber
Bansbachs industrial shock absorbers are a superior alternative to coil springs or rubber bump stops for energy absorption and linear deceleration. We offer many different models from mild to extreme. Our shock absorbers are the perfect solution for a wide range of applications, from a simple cabinet door, to the corrosive environments of the medical field, or the extreme environment of industrial machine equipment. Bansbach shock absorbers are designed to absorb the impact with no bounce back. This steady, gradual deceleration allows faster cycle rates, increased equipment life, and higher production rates while reducing maintenance expenses.
| Model | A | B | C | D | E | F | øG | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| FS-2006L-S | M20X1.5 | 6 | 55 | 49 | 43 | 6 | 6 | 27.7 | 8 | 24 |
| FS-2506L-S | M25X1.5 | 6 | 55 | 49 | 43 | 6 | 8 | 37 | 10 | 32 |
| FS-2706L-S | M27X1.5 | 6 | 55 | 49 | 43 | 6 | 8 | 37 | 10 | 32 |
| Model | FS-2006L-S | FS-2506L-S | FS-2706L-S |
|---|---|---|---|
| Max. absorption energy J (kgfm) | 7.8 (0.8) | 11.7 (1.2) | 15.6 (1.6) |
| Stroke mm | 6 | 6 | 6 |
| Max. equivalent mass kg (kgf) | 60 (60) | 90 (90) | 120 (120) |
| Range of impact rate m/s | 0.3~1 | 0.3~1 | 0.3~1 |
| Max. drag N (kgf) | 3920 (400) | 5880 (600) | 7840 (800) |
| Max. cycle rate cycle/min | 60 | 60 | 60 |
| Max. absorption J/min | 78 | 117 | 156 |
| energy per minute (kgfm/min) | (8.0) | (12) | (16) |
| Recovering power of the piston rod N (kgf) | 16.7 (1.7) or lower | 19.6 (2.0) or lower | 22.6 (2.3) or lower |
| Operating temperature °C | -5~70 | -5~70 | -5~70 |
| Mass g | 114 | 210 | 221 |
|
*Do not use this product without carefully reading the attached owner's manual. *Ensure that an external stopper is also used. *Ensure that sufficient mounting strength is secured for this product. (As a guideline, it should be 2 to 3 times the maximum drag listed in the catalogue.) *Do not use this product in a vacuum or a location where it may come in contact with oil. *Ensure that an eccentric load is not applied to the soft absorber. (Allowable eccentric angle: ±2.5°) *Ensure that an external stopper is also used. *To adjust, turn the adjustment knob with a slotted screw driver. *Because the adjustment can be done in an analog manner, a value between two integerson the indicator can be set. |
