FL Series
Adjustable Shock Absorber

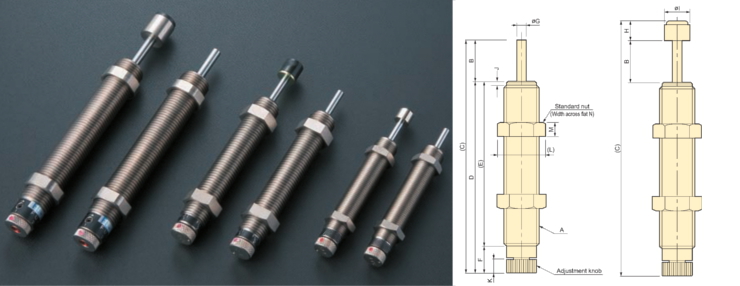

Bansbachs industrial shock absorbers are a superior alternative to coil springs or rubber bump stops for energy absorption and linear deceleration. We offer many different models from mild to extreme. Our shock absorbers are the perfect solution for a wide range of applications, from a simple cabinet door, to the corrosive environments of the medical field, or the extreme environment of industrial machine equipment. Bansbach shock absorbers are designed to absorb the impact with no bounce back. This steady, gradual deceleration allows faster cycle rates, increased equipment life, and higher production rates while reducing maintenance expenses.

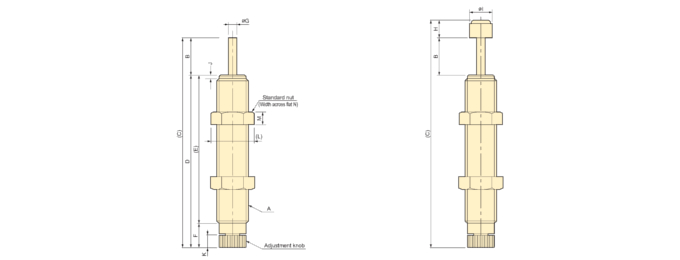

| Model | FL-1214H- | FL-1417H- | FL-1620H- |
|---|---|---|---|
| Max. absorption energy J (kgfm) | 5.4 (0.55) | 14.7 (1.5) | 17.6 (1.8) |
| Stroke mm | 14 | 17 | 20 |
| Max. equivalent mass kg (kgf) | 30 (30) | 50 (50) | 60 (60) |
| Range of impact rate m/s | 0.3~3 | 0.3~3 | 0.3~3 |
| Max. drag N (kgf) | 1156 (118) | 2646 (270) | 2646 (270) |
| Max. cycle rate cycle/min | 60 | 60 | 60 |
| Max. absorption J/min | 98 | 176 | 235 |
| energy per minute (kgffm/min) | (10) | (18) | (24) |
| Recovering power of the piston rod N (kgf) | 12.7 (1.3) or lower | 15.7 (1.6) or lower | 19.6 (2.0) or lower |
| Operating temperature °C | -5~70 | -5~70 | -5~70 |
| Mass: (S type) g | 46 | 80 | 124 |
| Mass: (C type) g | 49 | 85 | 136 |
 | ||||||||||||||
| Model | A | B | C | D | E | F | øG | H | øI | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FL-1214H-S | M12X1.0 | 14 | 84 | 70 | 59.5 | 10.5 | 3.5 | --- | --- | 1.5 | 5 | 16.2 | 4 | 14 |
| FL-1214H-C | 92 | 8 | 8 | |||||||||||
| FL-1417H-S | M14X1.5 | 17 | 105 | 88 | 77.8 | 10.2 | 4 | --- | --- | 1.5 | 5 | 19.6 | 6 | 17 |
| FL-1417H-C | 115 | 10 | 10 | |||||||||||
| FL-1620H-S | M16X1.5 | 20 | 128 | 108 | 93.5 | 14.5 | 5 | --- | --- | --- | 4.4 | 20 | 6 | 19 |
| FL-1620H-C | 143 | 15 | 13.5 | |||||||||||
 |

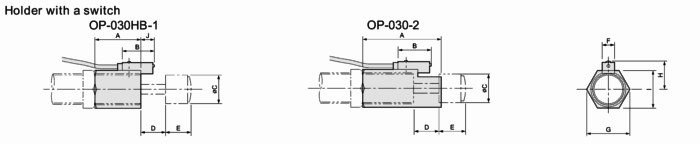

Model | A | B | øC | D | E | F | G | H | I | J | Applicable model | Mass g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OP-030KB-2 | 29 | 21 | 8 | 14 | 8 | 8 | 19.6 | 13.1 | 16 | --- | FL-1214H-C | 38 | |
| OP-030HB-1 | 25 | 21 | 13.5 | 20 | 15 | 8 | 21.9 | 15.5 | 19 | 9 | FL-1620H-C | 36 | |
| OP-030HB-2 | 40 | 21 | 13.5 | 20 | 15 | 8 | 21.9 | 15.5 | 19 | --- | FL-1620H-C | 46 | |
 | |||||||||||||
| Model | A | B | øC | D | E | F | G | H | I | J | Applicable model | Mass g | |
| OP-030KB-2 | 29 | 21 | 8 | 14 | 8 | 8 | 19.6 | 13.1 | 16 | --- | FL-1214H-C | 38 | |
| OP-030HB-1 | 25 | 21 | 13.5 | 20 | 15 | 8 | 21.9 | 15.5 | 19 | 9 | FL-1620H-C | 36 | |
| OP-030HB-2 | 40 | 21 | 13.5 | 20 | 15 | 8 | 21.9 | 15.5 | 19 | --- | FL-1620H-C | 46 | |
|
*With an adjustable multiple-orifice structure, an optimal impact absorption can be achieved by making adjustments, even under variable operating conditions. *This product is a long-stroke type that is suitable for high-speed (3m/s) collisions. |
|
* Do not use this product without carefully reading the attached owner's manual. * We recommend that you use it with an external stopper (Stopper nut OP-020**). * Ensure that sufficient mounting strength is secured for this product. (As a guideline, it should be 2 to 3 times the maximum drag listed in the catalogue.) * Do not use this product in a vacuum or a location where it may come in contact with oil. * Ensure that an eccentric load is not applied to the soft absorber. (Allowable eccentric angle: ±2.5°) |
